아래와 같이 Android studio에서

1, AIDL 인터페이스 작성

2, Client 코드에서 Native Service를 ServiceManager로 가져와 Service의 함수들을 이용

모두 시도해본 것은 아니나 아래의 경우의 수가

모두 AIDL or Binder를 통하여 IPC가 가능

Native Service <-> Java Client

Native Service <-> Native Client

Java Service <-> Java Client

Java Service <-> Native Client

#AIDL

package android.binder.example;

/**
 * AIDL file for Binder API generating
 *
 */

interface IDemoAPI{
    String getName();
    String getFullName(String part);
    int sum(int a,int b);
}

#JAVA Client

package com.technicolor.clienttest;

import android.os.Bundle;
import android.os.IBinder;
import android.util.Log;
import android.binder.example.IDemoAPI;

import java.lang.reflect.Method;

import androidx.appcompat.app.AppCompatActivity;

public class MainActivity extends AppCompatActivity {
    private IDemoAPI mService;
    private static final String TAG = "HelloActivity IDemoAPI";
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        getDemoAPIService();
        try{
            Log.d(TAG, "1+2="+Integer.toString(mService.sum(1,2)));
            Log.d(TAG, "Name="+mService.getName());
            Log.d(TAG, "FullName="+mService.getFullName("AAABBBCCC"));
        }catch(Exception e){
            Log.d(TAG,e.toString());
        }
    }

    static final String SERVICE_NAME="android.binder.example";

    /*
     * Get binder service
     */
    private void getDemoAPIService()
    {
        IBinder binder=null;
        Log.d(TAG,"getDemoAPIService");
        try{
            //android.os.ServiceManager is hide class, we can not invoke them from SDK. So we have to use reflect to invoke these classes.
            Object object = new Object();
            Method getService = Class.forName("android.os.ServiceManager").getMethod("getService", String.class);
            Object obj = getService.invoke(object, new Object[]{new String(SERVICE_NAME)});
            binder = (IBinder)obj;
        }catch(Exception e){
            Log.d(TAG, e.toString());
        }
        if(binder != null){
            mService = IDemoAPI.Stub.asInterface(binder);
            Log.d(TAG, "Find binder");
        }
        else
            Log.d(TAG,"Service is null.");
    }

}

#Native Service

#include "server.h"

int main(int argc, char *argv[])
{
    sp proc(ProcessState::self());
    //get service manager
    sp sm = defaultServiceManager();

    //Register a service with the SERVICE_NAME
    sm->addService(String16(SERVICE_NAME),new demo_api::DemoAPI());
    ALOGE("%s service is starting.....",SERVICE_NAME);
    //Start Service
    ProcessState::self()->startThreadPool();
    //Loop for waiting for request
    IPCThreadState::self()->joinThreadPool();

    return 0;
}

출처:

1, <https://stackoverflow.com/questions/42002869/is-it-possible-to-bind-to-a-java-service-from-a-native-c-client-and-transact>

2, https://github.com/qianjigui/android_system_service_example

package com.technicolor.wifitestapp;

import android.app.NotificationChannel;
import android.app.NotificationManager;
import android.app.PendingIntent;
import android.app.Service;
import android.content.Context;
import android.content.Intent;
import android.net.ConnectivityManager;
import android.net.LinkProperties;
import android.net.Network;
import android.net.NetworkCapabilities;
import android.net.NetworkRequest;

import android.net.wifi.WifiManager;
import android.os.Build;
import android.os.IBinder;
import android.util.Log;
import android.widget.RemoteViews;
import android.widget.Toast;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.annotation.RequiresApi;
import androidx.core.app.NotificationCompat;

public class WifiTestService extends Service {
    private static String LOG_TAG = "easy";


    private Context mContext;
    @Nullable
    @Override
    public IBinder onBind(Intent intent) {
        return null;
    }

    @Override
    public int onStartCommand(Intent intent, int flags, int startId) {
        Log.d(LOG_TAG, "onStartCommand");

        printAllNetworks();

        return START_STICKY;//super.onStartCommand(intent, flags, startId);
    }
    private ConnectivityManager.NetworkCallback mNetworkCallback;
    @Override
    public void onCreate() {
        Log.d(LOG_TAG, "onCreate");
        registerNetworkCallback();
        mContext=getApplicationContext();
        super.onCreate();
        startFgService();
    }



    @Override
    public void onDestroy() {
        Log.d(LOG_TAG, "onDestory");
        super.onDestroy();
        unregisterNetworkCallback();


    }

    void startFgService(){
        Intent intent = new Intent(this, MainActivity.class);

        PendingIntent pi = PendingIntent.getActivity(this, 0, intent, 0);
        String CHANNEL_ID= "test";

        NotificationCompat.Builder builder;
        NotificationChannel ch = new NotificationChannel(CHANNEL_ID, "test channel", NotificationManager.IMPORTANCE_DEFAULT);


        ((NotificationManager) getSystemService(Context.NOTIFICATION_SERVICE)).createNotificationChannel(ch);
        builder = new NotificationCompat.Builder(this,CHANNEL_ID );
        builder.setContentIntent(pi);
        startForeground(1, builder.build());
    }
    private void printAllNetworks(){


        ConnectivityManager cm = (ConnectivityManager)getSystemService(Context.CONNECTIVITY_SERVICE);
        Network[] networks = cm.getAllNetworks();

        for ( Network n  : networks){
            Log.d(LOG_TAG, "print all networks");
            NetworkCapabilities np = cm.getNetworkCapabilities(n);
            Log.d(LOG_TAG, np.toString());
        }

    }

    @RequiresApi(api = Build.VERSION_CODES.Q)
    private void workaround(){
        WifiManager mWifiManager  = (WifiManager) mContext.getSystemService(Context.WIFI_SERVICE);
        ConnectivityManager cm = (ConnectivityManager)getSystemService(Context.CONNECTIVITY_SERVICE);
        Network[] networks = cm.getAllNetworks();

        for ( Network n  : networks){
            Log.d(LOG_TAG, "print all networks");
            LinkProperties lp = cm.getLinkProperties(n);
            String iName = lp.getInterfaceName();

            Log.d(LOG_TAG, iName);
            if(iName.equals("eth0")){
                Log.d(LOG_TAG, iName + "found don't workaround....");
                return;
            }
        }


        if (mWifiManager.isWifiEnabled()) {

            Log.d(LOG_TAG, "wifi manager disconnect and recoonect");
            Toast.makeText(mContext, "wifi manager disconnect and reconnect", Toast.LENGTH_LONG).show();

            mWifiManager.disconnect();
            mWifiManager.reconnect();
        } else {
            Log.e(LOG_TAG, "wifi disabled");
        }
    }

    private void registerNetworkCallback() {
        ConnectivityManager cm = (ConnectivityManager)getSystemService(Context.CONNECTIVITY_SERVICE);
        NetworkRequest.Builder builder = new NetworkRequest.Builder();

        mNetworkCallback= new ConnectivityManager.NetworkCallback(){

            @Override
            public void onAvailable(@NonNull Network network) {

                super.onAvailable(network);
                Log.d(LOG_TAG, "onAvailable : "+network.toString());
                printAllNetworks();
            }

            @RequiresApi(api = Build.VERSION_CODES.Q)
            @Override
            public void onLost(@NonNull Network network) {
                super.onLost(network);
                Log.d(LOG_TAG, "onLost try to workaround");
                workaround();


            }

        };

        cm.registerNetworkCallback(builder.build(), mNetworkCallback);
    }
    private void unregisterNetworkCallback(){
        ConnectivityManager cm = (ConnectivityManager)getSystemService(Context.CONNECTIVITY_SERVICE);
        cm.unregisterNetworkCallback(mNetworkCallback);
    }


}

	protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        mContext=getApplicationContext();
        //startService(new Intent(mContext, WifiTestService.class));


        startForegroundService(new Intent(mContext, WifiTestService.class));
    }

//AndroidManifest.xml

uses-permission android:name="android.permission.WAKE_LOCK"

import android.os.PowerManager;


//init
PowerManager pm = (PowerManager)getSystemService(Context.POWER_SERVICE);
mWakeLock = pm.newWakeLock(PowerManager.PARTIAL_WAKE_LOCK, "Tag name");


//acquire
mWakeLock.acquire();

//release
if( mWakeLock.isHeld() ){
    Log.d(TAG, "wake lock release");
    mWakeLock.release();
}

wake lock 주체를 아래서 확인 가능

$cat /sys/power/wake_lock

출처 : http://androidxref.com/9.0.0_r3/

Deprecated API 사용할 때 발생하는 warning

호출부에 적절히 @SuppressWarnings("deprecation") 붙여준다

Recompile with -Xlint in Android studio

You need to add the following inside your app level buld.graddle file

allprojects {
    tasks.withType(JavaCompile) {
        options.compilerArgs << "-Xlint:unchecked" << "-Xlint:deprecation"
    }
}

If for some reasons you need to continue using a deprecated API you can just suppress the warning. You could annotate the deprecated method with the

@SuppressWarnings("deprecation")

annotation.

post link

출처: <https://stackoverflow.com/questions/47740812/recompile-with-xlint-in-android-studio>

발생 사유는  release 모드 빌드시 sign할 keystore가 지정되지 않았기 때문

1, Default debug.keystore를 local project에 copy

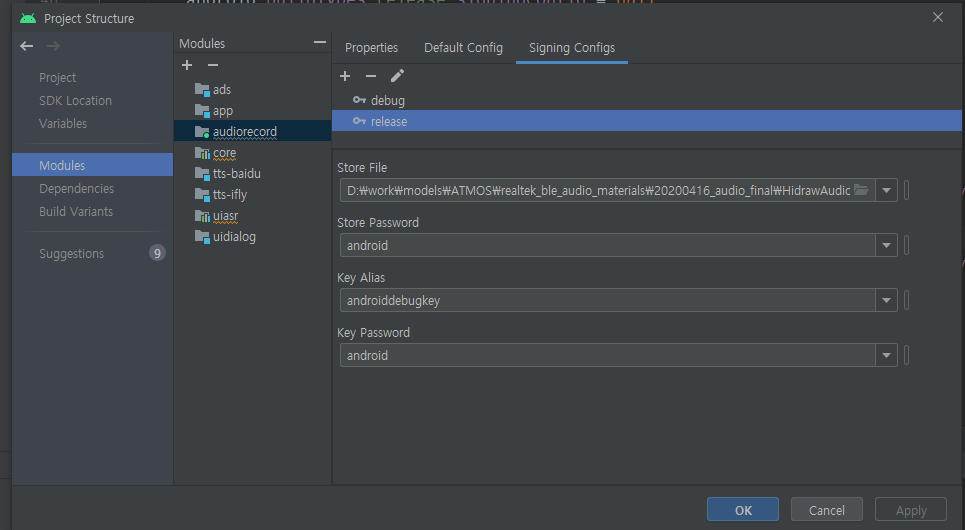

2, project structure -> sign config 들어가서 release에 해당 패스를 설정

3, 아래의 default key password 및 alias를 입력한다.

(customized 된 경우, 생성된 keystore의 정보가 반드시 필요함)

디폴트 keystore 사용 시 아래의 값을 지정.

Keystore name: "debug.keystore"
Keystore password: "android"
Key alias: "androiddebugkey"
Key password: "android"
CN: "CN=Android Debug,O=Android,C=US"

출처: <https://stackoverflow.com/questions/18589694/i-have-never-set-any-passwords-to-my-keystore-and-alias-so-how-are-they-created>

https://codechacha.com/ko/android-q-mainline-apex/

참조~

 Q에서 도입된, APEX, so, jar등 라이브러리 업데이트가 가능하도록 apk와 유사하게 google store를 통해 업데이트 가능

기존의 RO partition에 존재하는 component의 업데이트를 가능하게 만들기 위한 구조

http://forum.falinux.com/zbxe/index.php?_filter=search&mid=lecture_tip&search_target=title&search_keyword=JNI&document_srl=573556

http://forum.falinux.com/zbxe/index.php?_filter=search&mid=lecture_tip&search_target=title&search_keyword=JNI&document_srl=570118

예제 참조

출처 :  https://github.com/YancyGitHub/native-service

#build.gradle
=> gradle build-tools 버전을 빌드 서버에 맞도록 classpath를 변경
Ex)3.3.2 -> 3.1.1

classpath 'com.android.tools.build:gradle:3.1.1'




#app/build.gradle
=> SDK 버전 및 build tool version을 명시, buildToolsVersion의 경우 수동으로 입력
compileSdkVersion "28"
buildToolsVersion "28.0.3"

=> 앱 이름 변경

android{

   def APP_NAME = "WifiMonitoringService"

   buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android-optimize.txt'), 'proguard-rules.pro'
            applicationVariants.all { variant ->
                variant.outputs.all {
                    outputFileName = APP_NAME + ".apk"
                }
            }
        }
    }
}





#Android.mk 이용하여 build

명령어:
$(info return :$(shell ./gradlew assembleRelease)

결과물
./app/build/outputs/apk/release/WifiMonitoringService.apk


참조 : https://github.com/jitpack/jitpack.io/issues/3687
